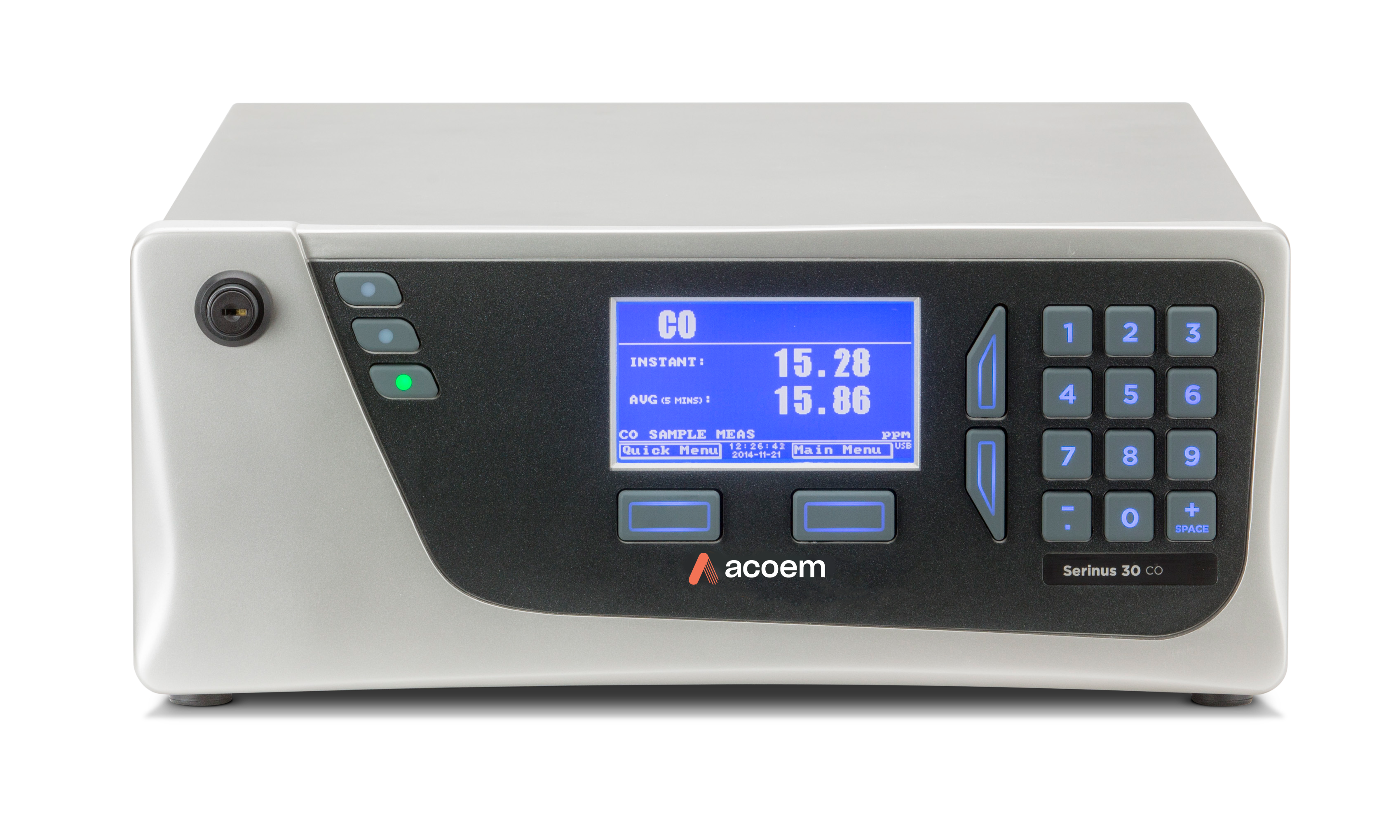

Serinus® 30

Carbon Monoxide (CO) analyser

Increased carbon monoxide concentrations are a threat to both the outdoor and indoor environments. The Serinus 30 Carbon Monoxide Analyser uses Non-Dispersive Infrared Spectrophotometry (NDIR) technology to measure CO in ambient air, in the range of 0 – 200 ppm, with a lower detectable limit of 40 ppb. Delivering precise, reliable and real-time data insights, it measures trace levels of carbon monoxide to ensure that people across various industrial or commercial environments can operate safely.

Features

Real-time monitoring every minute

Comprehensive data logging and remote viewing of over 200 operational parameters.

Remote application dashboard

Bluetooth connectivity combined with the ‘Serinus® Remote’ Android App for simpler programming, viewing, downloading and emailing of data.

Long-life data storage

Removable flash memory stores ~10 years of data, including up to 12 individual parameters and event logs.

Intuitive interface

Advanced GUI and a large alphanumeric keypad with tactile keys.

Ergonomic design

Rack slide design for easy access to internal components and analyser removal from a rack cabinet.

Low power demand

Reduced AQMS power usage due to the instrument’s low power demand and ability to operate over a wide temperature range.

See our technology in action

Schedule a free demo to get a first-hand look at how our solutions support your business.

Schedule a free demo

Resources

Serinus 30
Technical Specifications

Serinus 30
User Manual

Serinus 30
Certificate of Product Conformity

Serinus 30
Download Firmware

Non-dispersive infrared technology

Serinus 30 operates on the principle that CO absorbs infrared radiation (IR) at a wavelength near 4.7 microns. IR radiation (at 4.7 microns) is passed through a five-metre folded path length through sample air. The strength of the signal received is proportional to the amount of CO in the sample. A band pass filter is fitted to the sign
A gas filter correlation wheel is combined with this system, which contains three parts to increase measurement accuracy: CO, N2 and the mask.

The CO window contains saturation (40%) of CO which acts as a reference beam – absorbing a known amount of light.
The N2 window, containing 100% N2, does not absorb IR at 4.7 microns at all and is used during normal CO measurement.
The mask totally blocks the light source and is used to determine background signals, the strength of other signals relative to each other and the background.

Approved globally

US EPA approval (RFCA–0509–174)*
EN approval TÜV (0000040203-02)*
Australian Standard (AS 3580.7.1-2011)
Russian approval (56262-14)
French approval LSCQA
Ukraine approval (12/3/B/24/295-17)
Chinese Pattern Approval (JJF1364-2012)
Korean approval NIER (AACMS-2017-02)

Applications

Discover Acoem’s case studies

Our case studies

An ozone testing chamber to eliminate listeria in food sources casestudy

Measuring carbon dioxide (CO2) along ocean surfaces casestudy

Superior air quality monitoring for global environments

Air quality monitoring is increasingly important in today’s urban, industrial and rural areas. The Serinus® range of analysers has emerged through 40+ years of experience and knowledge gained from operating large air quality monitoring networks. The result is a superior portfolio of instruments that integrate seamlessly into continuous monitoring networks. They not only measure human exposure to pollutants but can be combined with trace/background monitoring as well as stack monitoring – thus becoming a vital tool for governments and organisations to track and abate air pollution and its effects on their immediate environment.
