Fusion SLM

Sound level meter IEC 61672 standard

FUSION SLM is the perfect sound level meter to start working with Acoem and discover the power of our products. It includes many FUSION 4G functions at a reasonable cost and efficiently responds to most acoustic measurements (environment, work, buildings…). It’s scalable and can communicate with its 4G modem option. It comes as standard with dBTrait Viewer software for the simple and efficient processing of your data.

Contact us Resources

Features

Metrological
class 1 IEC 61672 builder built-in preamplifier
All-in-one
built-in Wi-Fibuilt-in 3G modem (optional)LAN interface built-in GPS antenna
Advanced indicators
automatic calibrator detection advanced acoustic indicators remote control text message notification of acoustic events text message notification in the event of operation problems
Powerful
24-hour autonomy2 to 128 GB SD memory cardmetrological audio recording
Modular
environmental measurements building acoustics vibration measurements health and safety measurements

See our technology in action.

Schedule a free demo to get a first-hand look at how our solutions support your business.

Schedule a free demo

Resources

Brochure Fusion SLM
Technical Datasheet

Acoem ecosystem

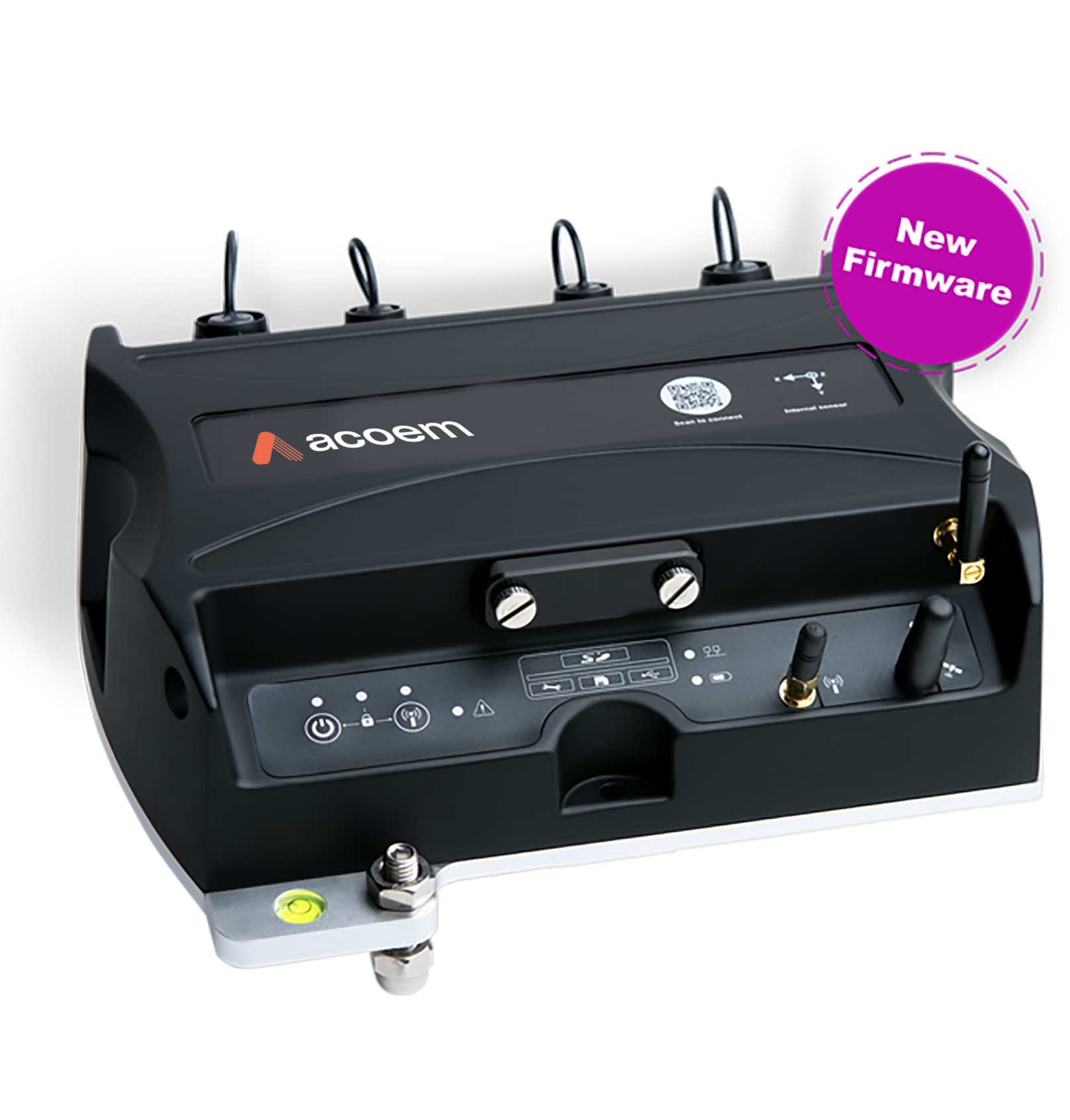

The Acoem environment ecosystem is all about synergy between the products in its new range. ORION, FUSION SLM, 4G FUSION and CUBE: 5 devices, 5 uses, and one single ecosystem focused on improving your productivity. To this end, they all operate in the same way when it comes to the integrated keyboard and Web interface. They use identical data processing software. And they all share the same accessories.
These complementary and innovation-packed systems offer harmonized and intuitive interfaces so as to ensure major time-savings for users.

Class 1 metrology

FUSION SLM is an IEC 61672 Class 1 solution, delivered with its calibration certificate. FUSION SLM can be used for measurements in the two reference directions 0° or 90° (with the DMK01 unit), to adapt to different possible measurements (land transport, aircraft, industrial noise and building sites…).

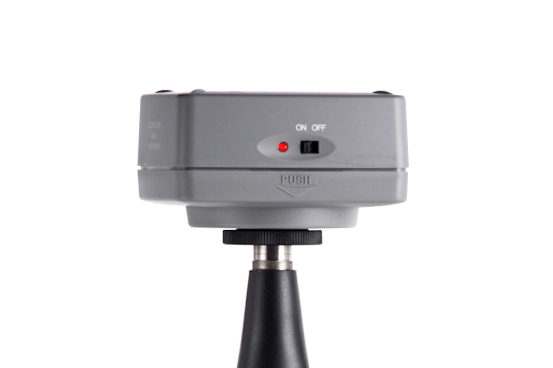

Calibration and verification

To simplify the installation of FUSION SLM on site, a function for the automatic detection of a calibration acoustic source allows the performance of a calibration and adjustments without the user needing to do anything more than switch the device on.
Furthermore, to ensure proper operation, an integrated measurement-chain verification system performs periodic checks. Electrical verification allows the testing of the entire measurement chain, including the microphone. It consists of injecting an alternating sinusoidal load on the microphone’s terminals at the selected frequencies at one or two levels. The principle is to read reference values and check the deviation with respect to other measured values over time.

Advanced indicators

FUSION SLM includes many standard functions including:

  • The option to set a level threshold to trigger an action (coding, audio recording…)
  • The recording of advanced indicators like sliding Leq dose, very useful for measuring the impact of concerts or building sites

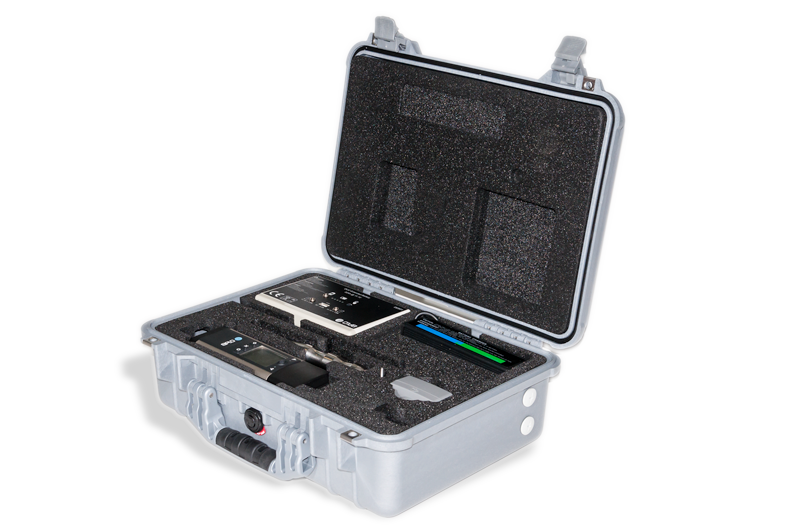

Accessories

In addition to its technical performance, FUSION SLM comes with numerous accessories to facilitate day-to-day use:

  • handle

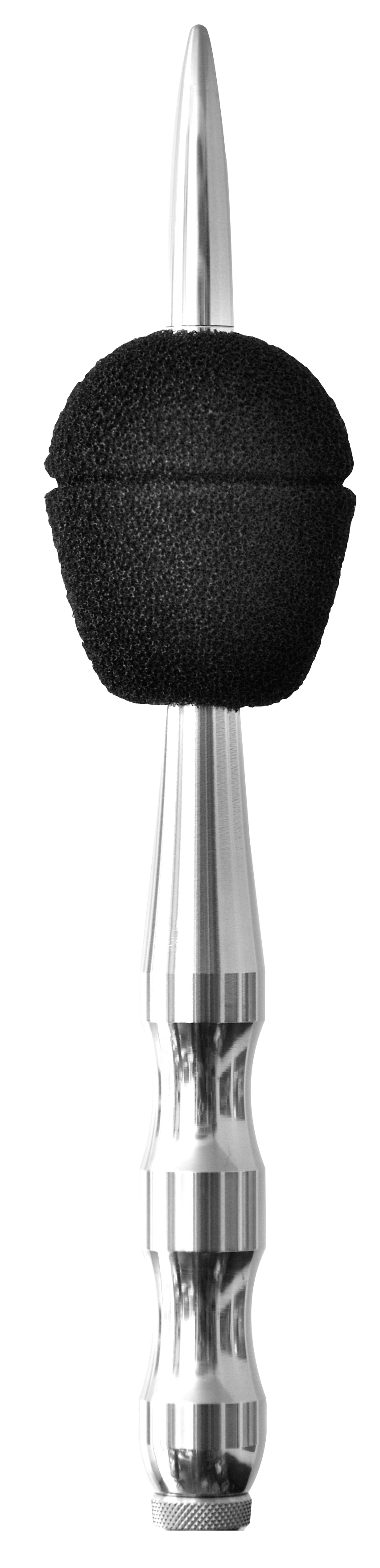

  • DMK01 outdoor microphone unit
  • DSC01 autonomous (up to 30 days) and weatherproof case
  • interface with weather station (two or six sensors)
  • TM01 tapping machine
  • omnidirectional and directional noise sources

Simplify Building Acoustics

FUSION SLM includes an optional “Building Acoustics” module, developed to enhance the productivity of building acoustics technicians when measuring the acoustic performance of buildings. To simplify your measurement sessions, we have included:

  • Automatic detection of the type of measurement performed
  • Measurement quality indicators for reverberation time (ISO 3382 standard)
  • Direct calculation of standardized values in FUSION SLM…

Additionally, FUSION SLM is delivered free of charge with dBInside Viewer software, so you can do as many standardized calculations as you want.

Applications

Discover Acoem’s case studies

Our case studies
Monitoring for the environment & preserving history casestudy
Boosting intelligence with data casestudy

FUSION SLM – Technology at the service of your productivity

FUSION SLM is designed to fulfill your needs in all situations. Easy to use, as effective in the hand as on a tripod, this instrument offers the best available technology to handle all measurement situations. Powerful functions, including vibration measurements, are integrated to meet your needs for on-site analysis, making FUSION SLM the most innovative sound level meter and an exceptionally communicating tool, increasing your productivity!
