Straightness measurement

Straightness with an edge

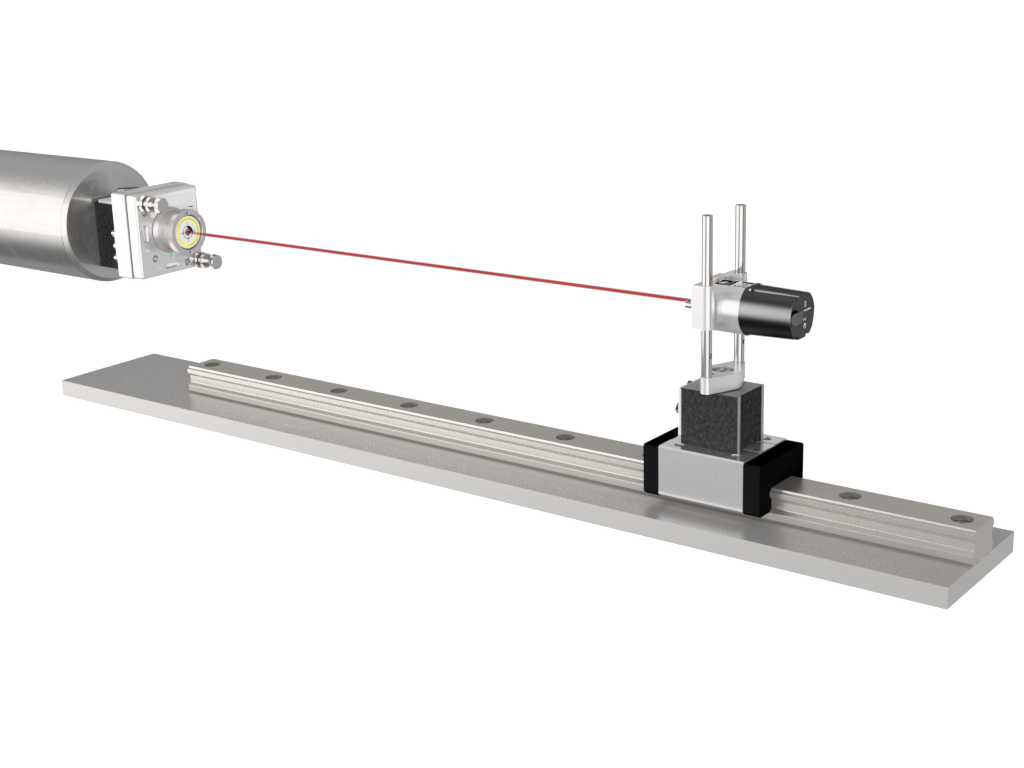

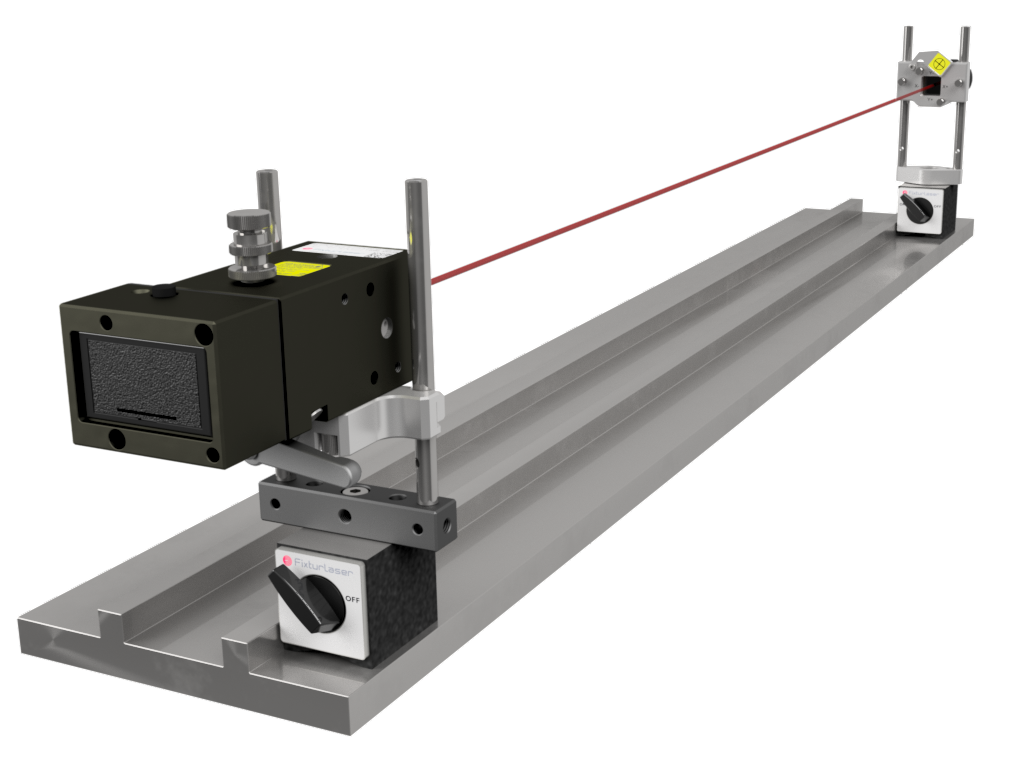

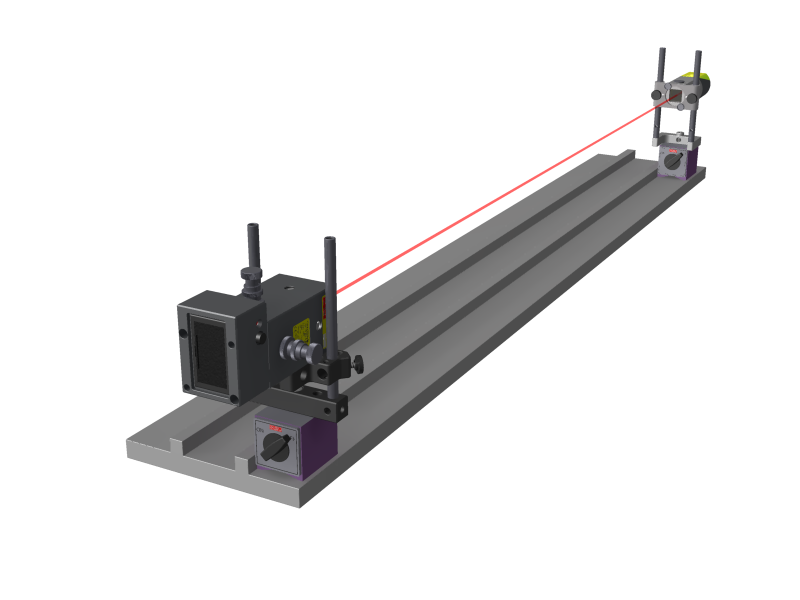

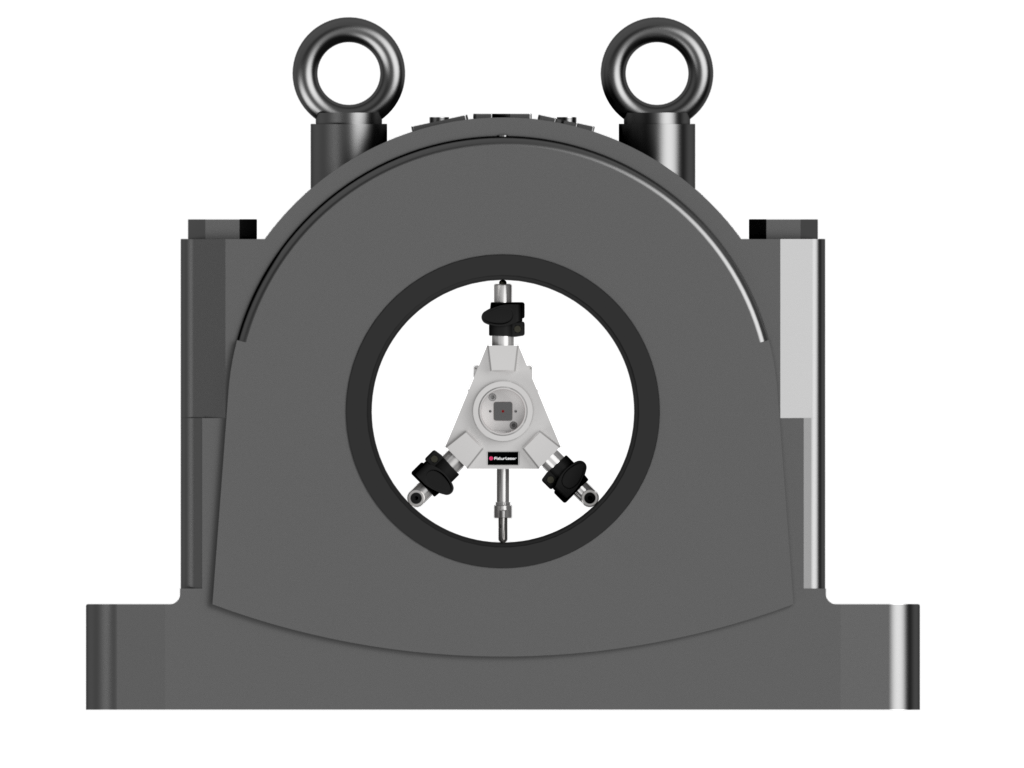

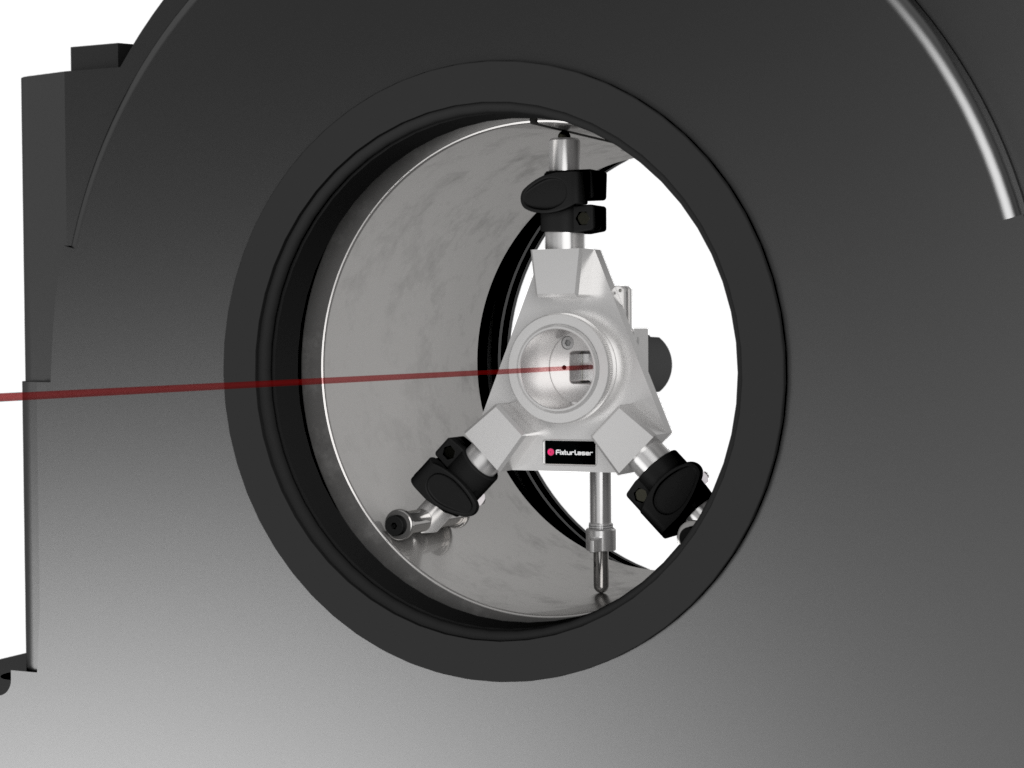

The straightness application is measured in two axes, where the laser beam is used as a reference. The deviation in distance between the laser beam and the measurement object is measured in two or more positions with the use of a receiver.

See our technology in action.

Schedule a free demo to get a first-hand look at how our solutions support your business.

Schedule a free demo

Resources

NXA Ultimat
Brochure

NXA Ultimate
Manual - Shaft Alignment

NXA Ultimate
Manual - Geometry

NXA Ultimate
Quick Tips

What does the program do ?

The program allows for up to 99 points to be measured.

Typical straightness applications are measurements of machine guides, machine beds, machine ways, and guide rails.

How to do a straightness measurement

1. Configuration

Quick and easy to configure
Pre-defined configuration

2. Measurement

Distinct overall view of the measurement
Instant display of measurement object’s position
Color-coded measurement points
Measurement points can be registered in any order you prefer

3. Adjustment

Live values during the adjustment phase
The angle guide displays the accepted (green) measurement point registration area
Green arrows show you in which direction to adjust towards zero
Color-coded measurement values
