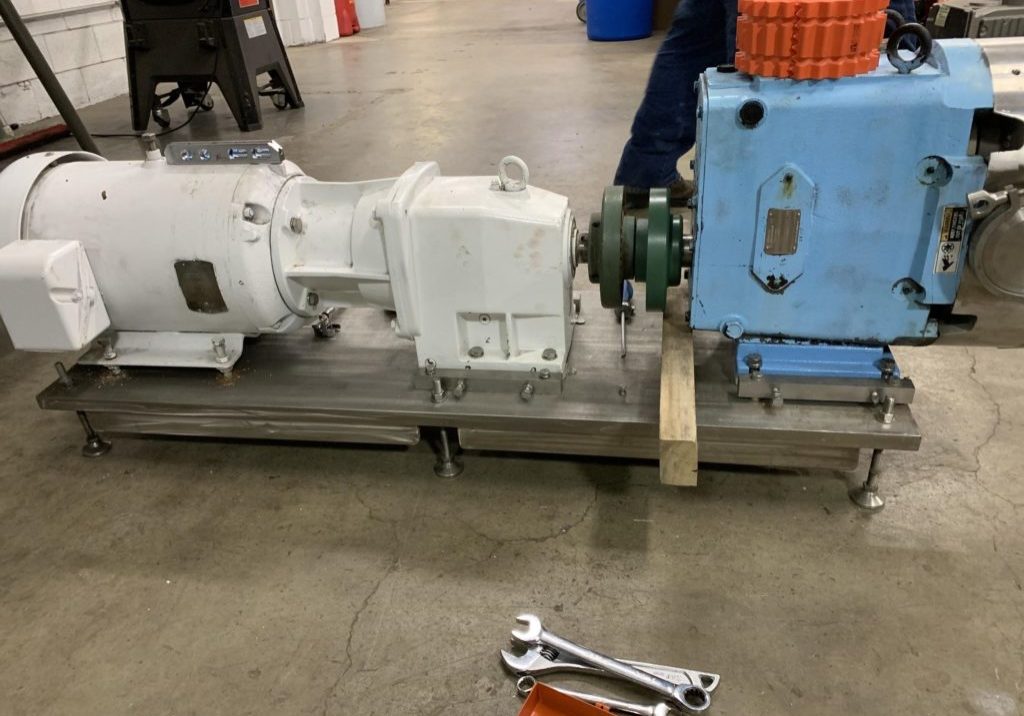

This rotary lobe pump is driven by a motor and a gearbox. The motor to gearbox is not align-able as it is a direct connection with a C-Face mount. This motor/gearbox assembly has 8 feet which makes it difficult to move. Notice that the base also has 6 feet. The pump has 4 feet.
The first thing that had to be done is to stabilize the base. To do this we used a torque wrench to adjust the base feet until we had even pressure on all 6 feet. Essentially, taking the soft foot out to limit the inconsistent flexing of the base. It will be difficult to do without a torque wrench.
We then moved up to the machines mounted to the base. Knowing that moving the drive unit would be more problematic, we centered the motor/gearbox unit over the hold down bolt holes, verified that we were higher than the pump, corrected any soft foot then tightened the hold down bolts of all 8 feet. This is now the “Stationary” machine. We then completed the alignment with the pump as the “Movable” machine, first by performing the Pre-Alignment Steps Pre-alignment then the precision shaft alignment as outlined in our reliability training.
After the alignment was completed, we decided to move the pump to a new location and see if moving with a forklift or resting on a new surface would affect the alignment… It did. We then simply used the torque wrench and balanced the pressure on the base feet and the alignment was back.
