ENOM

Electromechanical NO monitor for tunnels

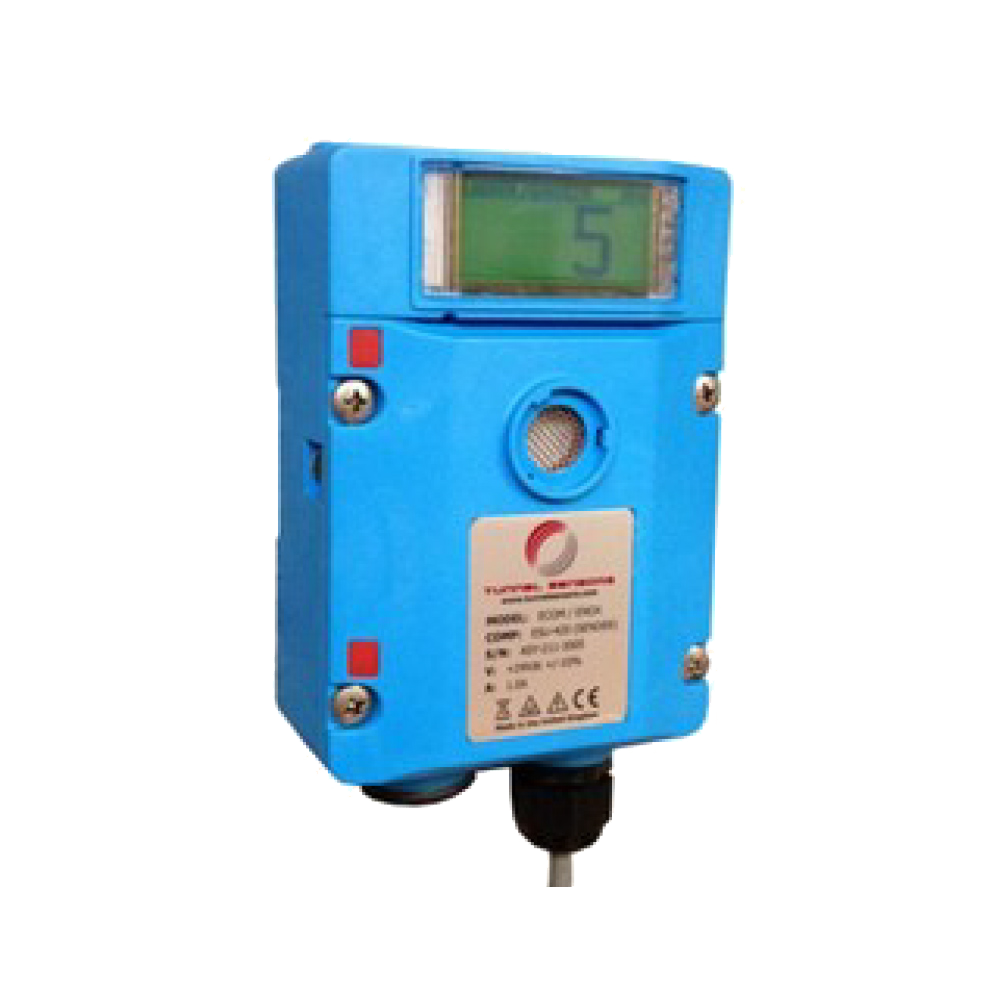

The ENOM is a compact electrochemical gas monitor to measure the concentration of Nitric Oxide (NO) within tunnel environments

Contact us Resources

Features

Special design
Designed for in-situ monitoring in tunnels or similar confined spaces
NO measurement
Electrochemical measurement of NO
Gas detector
High accuracy, intelligent gas detector with pre-calibrated sensing modules
Clear information
Backlit LCD display providing clear information and diagnostic data
Ingress protection
Rugged and reliable, with ingress protection toIP65
Compatibility
Compatible with BS EN 50545-1:2011

See our technology in action.

Schedule a free demo to get a first-hand look at how our solutions support your business.

Schedule a free demo

Resources

ENOM
Brochure ENOM
Data sheet

ENOM

The ENOM tunnel monitor measures the concentration of Nitric Oxide (NO) within an ambient environment such as road and rail tunnels or other industrial applications. These measurements can be used as part of an air quality management system for ventilation control.

Benefits

  • Cost effective, fixed sensor solution
  • Rugged and reliable, with IP65 ingress protection
  • Easy to install, commission and operate
  • Plug-in sensor modules for quick and simple replacement
  • Compatible with BS EN 50545-1:2011

Fixed sensor using electrochemical cell

The ENOM is a fixed sensor, which uses an electrochemical cell for NO detection. The ENOM consists of a Sender Unit and a ‘plug-in’ Sensor Module, which are mounted together on the wall or ceiling of the tunnel. The Sensor Module is pre-calibrated and stores all necessary data relating to type identification, sensing range and specific calibration. This data is automatically recognised by the Sender Unit when the module is fitted.

Applications

Discover Acoem’s case studies

Our case studies
Monitoring for the environment & preserving history casestudy
Ambient Air Fence Line Application casestudy

How works the ENOM?

Using an electrochemical cell means that the ENOM combines good sensitivity at low gas concentrations with high range capability and excellent stability. Electrochemical cells contain an electrolyte that is gradually consumed during use, influenced mostly by the duty cycle, ambient temperature and humidity. Therefore, the Sensor Module requires replacement / recalibration every 6 to 12 months to ensure accuracy of response. The sensor modules are pre-calibrated plug-in units which can be quickly and conveniently replaced, which means calibration gases are not required. Replacement sensor modules are available from Tunnel Sensors.

The ENOM is an intelligent sensor with 4-20 mA output and the option of RS485 serial communication protocols. It has two visual output alarm signals for GENERAL alarm and HIGH alarm. Default values are entered during manufacture and these can be adjusted to preferred values.
