Level

The tool for leveling or machine parts during installation !

Level is a battery-powered measuring sensor that connects wirelessly via Bluetooth to the NXA Ultimate or NXA Pro display unit.

Features

Dual-axis

Measures the angular deviations from the surface in two axes

Range

Large measurement range (± 50 mm/m)

Remote access

Wireless communication

Autonomy

Built-in rechargeable batteries

Standards

IP65 protection class

Easy to install

Easy mounting

Operating time

Up to 12 hours

See our technology in action.

Schedule a free demo to get a first-hand look at how our solutions support your business.

Schedule a free demo

Resources

Level
Brochure

Level
Manuals

What Level can do for you !

Acoem Level is a battery-powered measuring sensor that connects wirelessly via Bluetooth to the Acoem NXA Pro display unit.
The measuring sensor is used for levelling machines or machine parts during installation and gives accurate measurement results. The measuring sensor measures the angular deviations from the surface in two axes using a wide measurement range (± 50 mm/m), high accuracy and with a resolution down to 0.01 mm/m. Measuring sensors can be mounted using magnetic feet or directly on the table, and provide maximum flexibility.

The measuring sensor

The measuring sensor is used for levelling machines or machine parts during installation and gives accurate measurement results.

The measuring sensor measures the angular deviations from the surface in two axes using a wide measurement range (± 50 mm/m), high accuracy and with a resolution down to 0.01 mm/m.

Measuring sensors can be mounted using magnetic feet or directly on the table, and provide maximum flexibility.

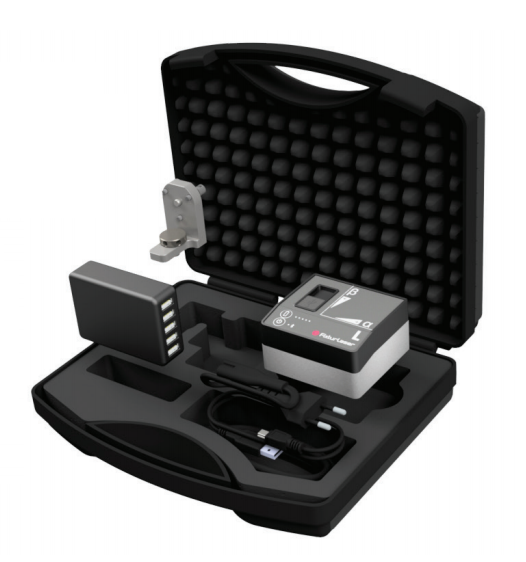

What’s in the case?

Level – Package with case

Measurement sensor
Mounting kit
Ext power cable, US, 2 m
Ext power cable, EUR, 0,5m
USB-cable A-mini B, 0,5 m, black
Power supply, 4 USB-ports, 5 VDC

Applications

Discover Acoem’s case studies

Our case studies

Changing Tactics: Looking at air quality monitoring from a different perspective for a healthier future Air quality monitoring

That is a great feature !

The Acoem Level is a two-axis level sensor that can be used wherever precision level measurements are required. It can be used to level machine bases or beds, bearings and journals, or for measuring “twist” on linear guide ways.

The accuracy is very precise with resolution down to 0.01 mm/m (.1mil/1”) with a range of +/- 50 mm/m (50 mils/1”). The Acoem Level is a battery-powered two-axis measuring sensor that connects via Bluetooth to the Acoem NXA Ultimate or NXA Pro display units, for easy documentation of the measurement process.
