Laser shaft alignment

In today’s world, less mechanics are expected to do more and be multi-disciplined. More hands make for lighter work and the EVO, with its compact size and user friendliness, fits perfectly into this mold.


Horizontal Shaft Alignment
Determine and correct the relative position of two coupled, horizontally mounted, machines. When aligned the rotational center of their respective shafts will be collinear
Vertical Shaft Alignment
Determine and correct the relative position of two vertically/flange mounted machines. When aligned the rotational center of their respective shafts will be collinear
Allows for the vertical and horizontal adjustments to be made together in one pass, saving valuable time and ensuring accuracy the first time around
Softcheck™ checks if there is a soft foot condition, i.e. when the motor is not resting firmly on all its feet
Target Values
Pre-set target values before starting your alignment work when you have determined the machines thermal expansion
Solution to solve base-bound and/or bolt-bound machines
Screen Flip
Select Screen Flip in the settings and it will enable you to see the machine set-up from the actual view that you have of the machine
Resume function
An exceptional power management function that allows you to pick up where you were in the event of an unexpected power cut
Memory Manage
Name your alignment and measurement report and save it in the Memory Manager. In the Fixturlaser EVO, you have the capacity to save up to 1200 measurement reports. They are also easily transferred to a PC via USB cable

See our technology in action.

Schedule a free demo to get a first-hand look at how our solutions support your business.

Alignment made simple, but not simpler

Acoem has developed a new shaft alignment tool, Acoem EVO, which features our unique adaptive user interface. The tool’s simplicity in its handling is characteristic for all Fixturlaser tools; a shaft alignment tool that can be handled by all maintenance professionals, and not only experts.

The EVO is all about evolved simplicity – a product without the frills and the bling bling.

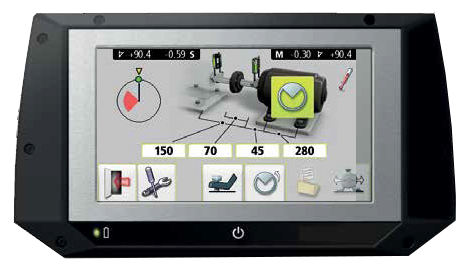

It stays true to our core values: simplicity, user friendliness and innovative techniques. It offers a compact display unit with a 5” color touch screen. It is slim and balanced, allowing you to hold it in one hand, leaving your other hand free to touch the screen icons and rotate the shafts.
With a clean and color coded graphic user interface, the EVO helps the maintenance professional throughout the measurement and alignment process without any hassles and stress.

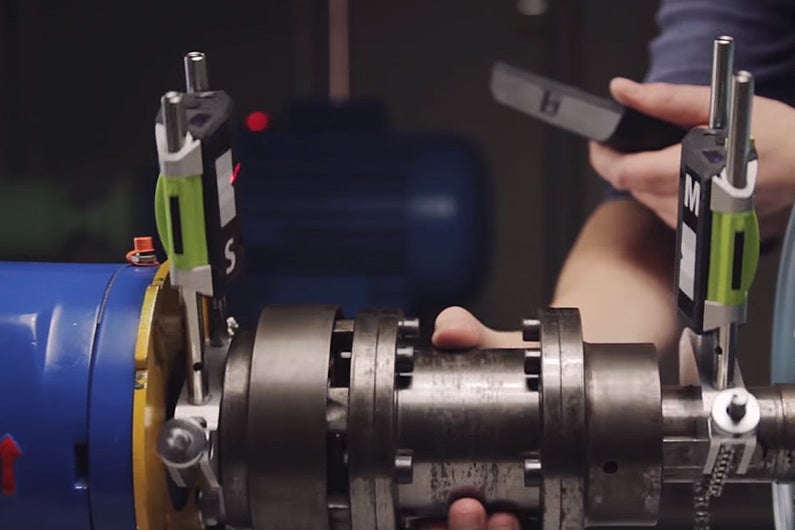

Smart sensors for precision alignment

The EVO sensors have a 30 mm CCD detector. With these, you are able to obtain unparalleled repeatability together with outstanding precision alignment, regardless of ambient light and measurement environment.
Another benefit is the size of the sensors that are very compact, only 33 mm thick, and therefore easy to fit into even the tightest spaces.

What’s in the EVO’s case?

  • Display unit
  • 2 pcs of digital smart sensors
  • 2 pcs of V-brackets, complete with chains
  • Rod kit
  • 2 pcs of chains 8 mm (length=970 mm)
  • Power cable, EU and US
  • USB cable with snap ferrite, A-mini, 2 m
  • Power supply 5 USB ports
  • 3 pcs of USB cables A-mini B, 0,5 m
  • Tape measure 5 m
  • 2 pcs of angled universal tools
  • NXA manual – English version

VertiZontal Moves – measure once, move twice!

The VertiZontal™ Moves feature displays exactly how much a misaligned machine needs to be adjusted, by adding or removing shims to the machine’s feet. No more re-measuring between the vertical and the horizontal phases to correct the horizontal misalignment.
This industry-first function saves time and ensures accuracy the first time around.


Discover Acoem’s case studies

Simplicity in your hands

The laser-based shaft alignment tool, EVO, is all about evolved simplicity.

It is a product without the frills and the bling, bling that stays true to our core values: simplicity, user-friendliness, and innovative techniques, while at the same giving you the power of alignment in your hands.
