AT-100

An app-based solution for shaft alignment

AT-100 is an app-based alignment tool that combines integrated apps, patented technology, and easy connectivity. The AT-100 is suitable for entry-level to expert shaft alignment work, the AT-100 shaft alignment tool provides high measurement flexibility. The intuitive tool works with the shaft alignment apps on a tablet or smartphone. It is simple to use and doesn’t require any special training. The AT-100 shaft alignment solution is the result of almost 40 years of shaft alignment expertise and innovation, leveraging the latest technology to enhance your user experience.

Contact us Resources

Features

Wireless sensors
The sensors come pre-mounted on its fixtures and pre-set to the most common setup
Digital sensor
Digital sensor with 20 mm detector and line laser eliminates rough alignment and shorten setup time
Wireless communication
Integrated Bluetooth for wireless communication between tablet unit and smart sensors
Horizontal shaft alignment
Task oriented Horizontal shaft alignment with mobile apps

See our technology in action.

Schedule a free demo to get a first-hand look at how our solutions support your business.

Schedule a free demo

Resources

AT-100
Brochure AT-100
Technical Datasheet AT-100
User Manual AT-100
Quick Guide Google Play App

AT-100 - entry-level shaft alignment tool

GuideU™

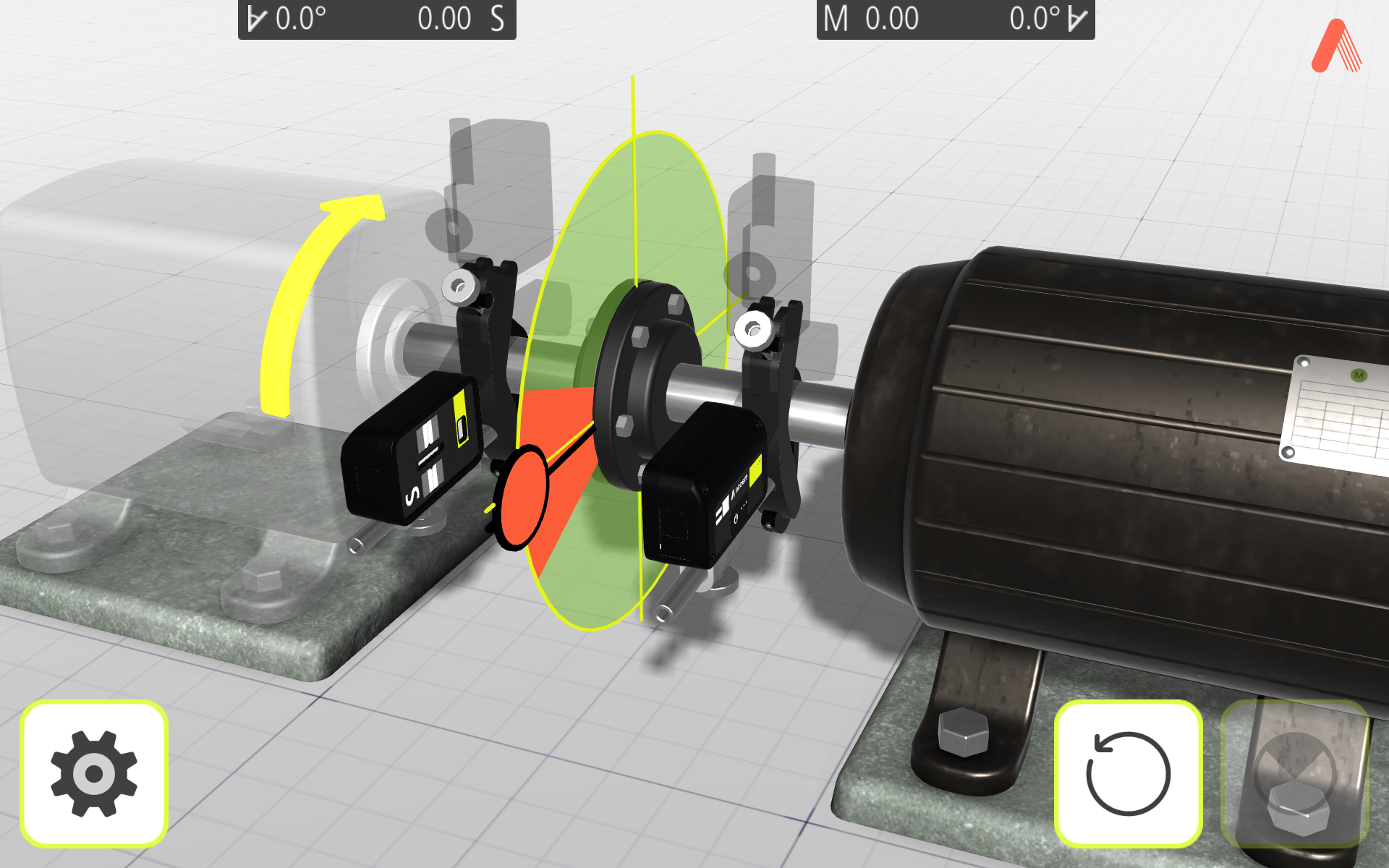

The next generation of 3D shaft alignment graphical user interfaces provides patented, customizable, icon-driven, and color-coded displays, making it easy to measure, align, document, and report on each job. Using visual, logical, and easy-to-follow steps, GuideU™ offers precise measurement and correction values and minimizes the risk of human errors.

VertiZontal™

VertiZontal™ adaptive user interfaceautomatically indicates exactly how much you need to adjust your misaligned machine by adding or removing shims to the machine’s feet. This  removes the need to remeasure between the vertical and the horizontal phases to correct the horizontal misalignment. This industry-first function saves time and ensures accuracy with every measurement.

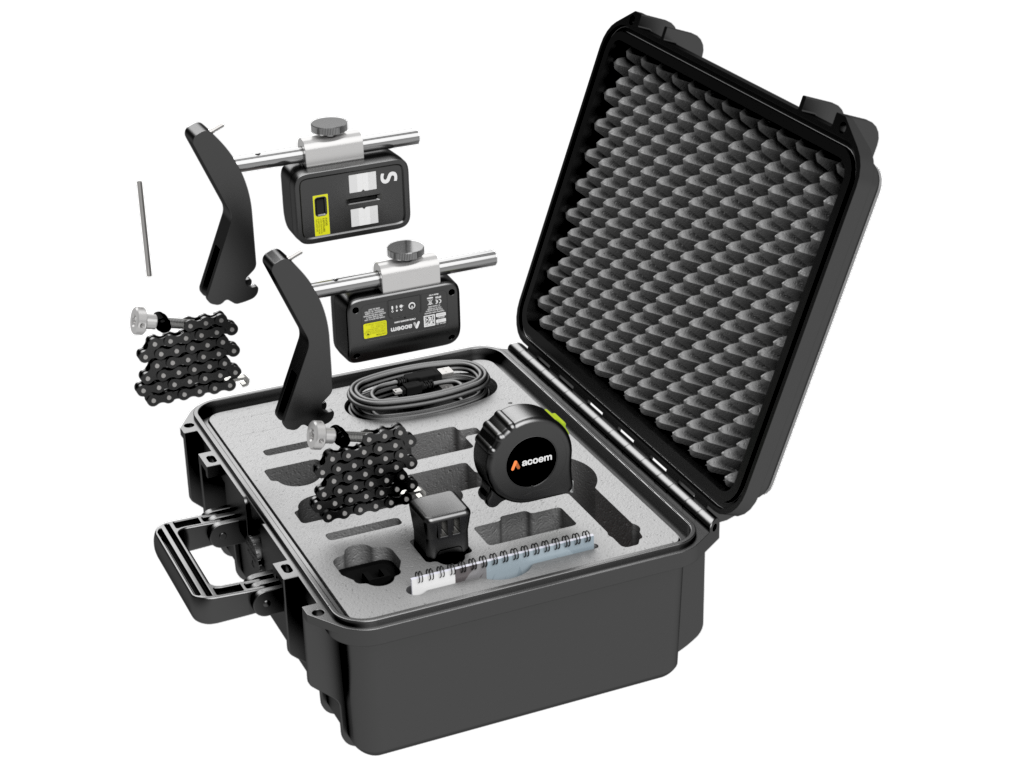

AT-100 Packaging & Deliverables

Each AT-100 is delivered with the following package:

  • Sensor, M8/S8
  • Rod kit NXA
  • Chain 12,7 mm 60 links (L=500 mm)
  • Tape measure 5 m
  • V-bracket complete
  • Angled universal tool – 1 pcs
  • USB-cable A-mini B 2m
  • Power supply 2 USB-ports 5 VDC
PDF report
TrueLive™

PDF report

Make your reporting process as simple as possible. The Acoem shaft alignment apps’ PDF report function provides fast and efficient on-site reporting functionality that converts saved measurement reports into PDF files, that can be shared instantly from your mobile device.

TrueLive™

Shaft Alignment is the key to success. An industry-first technology, it features two sensors with laser beams and inclinometers that monitor both shaft positions at the same time. Even if you move the machine’s position out of the detector range or interrupt the laser beam, the smart sensors will resume with an updated machine position and always deliver live values. TrueLive™ functionality helps you save time when aligning your machinery.

How to do PDF report with AT-100

How to do Tripoint mesure with AT-100

How to do take photo with AT-100

Applications

Discover Acoem’s case studies

Our case studies
Precise, Accurate and Convenient On-site alignment for critical machinery, in the most demanding conditions Case study
Early Fault Diagnosis of Roller Press Bearings Case study

Easy and adaptive user interface

ACOEMs adaptive user interface guides the user throughout the job in logical and easy to follow steps. It will deliver measurement and correction values based on what the system finds during the alignment process. This eliminates confusion for less-experienced users and provides ease of access throughout a measurement with the AT-100 system.
