Features

6-channel wireless vibration testing

Acoem’s advanced system enables comprehensive vibration analysis with 2 triaxial wireless sensors, ensuring precise diagnostics across multiple axes

Dual-plane synchronous wireless balancing

Achieve superior machine balance with ACOEM WBS™ technology which synchronises vibration and tachometer data in real time

Control plane visualisation

See the impact of adjustments on the second plane instantly, helping you make better balancing decisions with greater accuracy

GuideU™ – intuitive assistance

Acoem’s intuitive GuideU™ 3D graphical interface provides clear visual guidance that helps minimise human error.

360° machine view

Rotate the machine as you see it, minimising alignment errors and ensuring a seamless balancing process

Smart balancing assistants

Optimise balancing with one or 2-plane selection, trial weight recommendations, automatic weight splitting and more for faster, more efficient corrections.

Compact & portable

Your complete balancing kit fits into a compact case weighing less than 2 kg, ensuring effortless transport and quick deployment in the field.

Low total cost of ownership

With a fully-wireless system, say goodbye to cable replacements and unnecessary maintenance costs

All-in-one ecosystem

Seamless integration with Acoem’s shaft alignment apps, Bearing Defender and Machine Defender, and receive actionable data within NEST Vision, providing a complete monitoring and maintenance solution.

Resources

Acoem Wireless Balancer
Brochure

Acoem Wireless Balancer
Technical Datasheet

See our technology in action.

Schedule a free demo to get a first-hand look at how our solutions support your business.

Schedule a free demo

How It Works

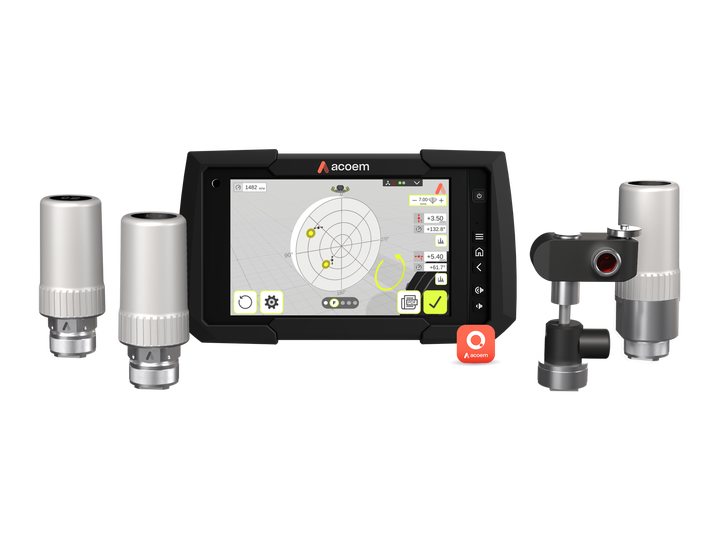

The Acoem Wireless Balancer features 2 wireless accelerometers and a laser tachometer, all connected to the timekeeper device. The timekeeper communicates wirelessly with both sensors and the user’s mobile device. Combined with smart assistance functions, it minimises the number of balancing runs required, ensuring optimal safety and long-term operational reliability.

Wireless Balancer - Wireless Innovation Continues

Why Choose the Acoem Wireless Balancer?

Maximum safety & flexibility

No more cables allows you to move freely and work with greater safety around machinery. Avoid entanglements and stay clear of hazardous environments with no more cable interference with rotating parts
Remote access lets you step back from the machine and perform balancing operations from a safe distance up to 20 meters.

Unmatched precision & speed

Multi-sensor synchronisation means simultaneous measurement in 6 directions for quick amplitude and phase analysis with 4 directions used for more reliable balancing in a single touch
Vertical and horizontal measurements from both sensors are captured synchronously, simplifying the user’s task and significantly reducing balancing time
The ability to see both planes at the same time and switch from horizontal to vertical direction in one click greatly enhances the reliability of the process.

Fast learning curve: removing human errors from the process

Complete field visualisation with 360° machine rotation to avoid errors (direction of rotation, point 0 reference, counting direction etc.) and ensure precise weight placement
Guide U™ 3D graphical guidance at all stages of the process
Intelligent correction with smart balancing assistants (one-2 plane auto selection, trial weight suggestions, automatic weight distribution etc.).

Industry Ready

Designed to meet industrial needs, the Acoem Wireless Balancer is built to withstand the toughest conditions. Its robust design is capable of enduring extreme environments, ensuring reliable operation even in the most challenging settings.

Robust and Durable
Constructed with durable materials, the Acoem Wireless Balancer is engineered for longevity and stability. It’s resistant to vibration and external interference for reliable data collection even in harsh industrial environments.

A cost-effective solution

Reduce maintenance costs by eliminating the need to replace, transport and clean 10 to 15 metres of cables per sensor. Cables are not only cumbersome, but also require frequent replacement, adding ongoing expenses throughout the tool’s lifespan.

All-in-One Solution

Seamless integration: Works with shaft alignment apps, Bearing Defender, Machine Defender, and integrates with NEST Vision.

What’s Included:

Each Wireless Balancer is delivered with the following included hardware:

Wireless accelerometers with magnets suited for curved surfaces x2
Wireless WBS™ timekeeper with flat magnet
Power-up magnet
Laser tachometer w/ M12 connector
Magnet holder for laser tachometer
Reflective tape
Accessories box
USB memory stick Type A & C
6x 3.7V AA Li-Ion rechargeable batteries
Safety instructions
Quick guide
Printed calibration certificate
Tablet or Acoem display unit*
Machine Defender triaxial sensor*
Optional: 1x Machine Defender sensor
Optional: 1x tablet or Acoem display unit
- *= Optional
